產品展示
線卡多個係列

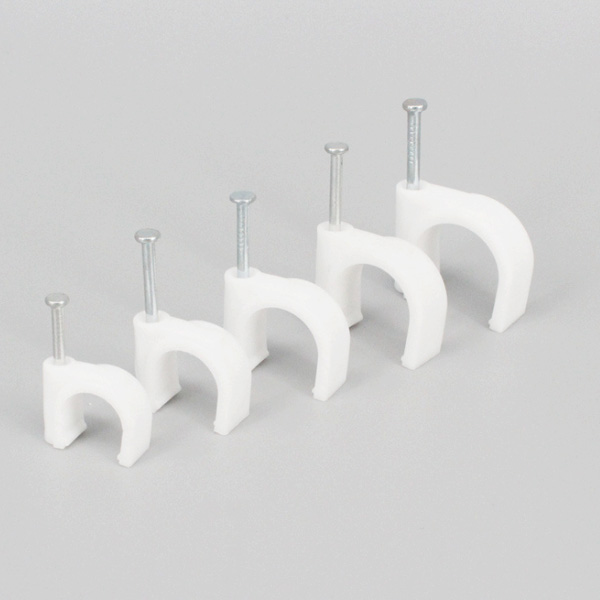

材料：使用PP材料釀成，附鋼釘。
采用辦法：將電纜放置卡內，用釘錘將鋼釘釘上牆體上相對即可將電纜較為正常。用處：通常室內配線較為正常電纜用。
Material:PP，Steel nail. How to use:Put the cable under the clip and hammer the nail into the wall to sccure the cable.
Application:Securing of calbes for general indoor wiring.
材料：使用PP材料釀成，附鋼釘。
采用辦法：將電纜放置卡內，用釘錘將鋼釘釘上牆體上相對即可將電纜較為正常。
用處：通常室內配線較為正常電纜用。
Material:PP，Steel nail.
How to use:Put the cable under the clip and hammer the nail into the wall to sccure the cable.
Application:Securing of calbes for general indoor wiring.
|

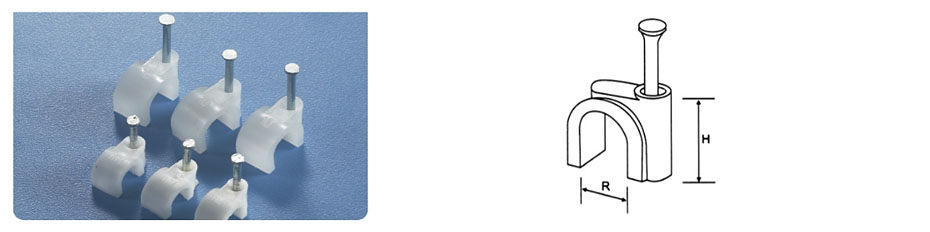

型號 ITEM NO. |
高H MM |
圓徑R MM |
鋼釘Nail MM |
產品包裝 PACKING |
| 4mm | 5.3 | 4 | 1.7×15 | 100pcs |
| 5mm | 6.5 | 5 | 1.7×15 | |
| 6mm | 8.1 | 6 | 1.7×17 | |
| 7mm | 8.7 | 7 | 1.8×19 | |
| 8mm | 9.6 | 8 | 1.9×21 | |
| 9mm | 10.7 | 9 | 2.0×22 | |
| 10mm | 11.7 | 10 | 2.05×25 | |
| 12mm | 12.8 | 12 | 2.05×27 | |
| 14mm | 14.9 | 14 | 2.4×32 | |
| 16mm | 16.9 | 16 | 2.5×35 | |
| 18mm | 20.8 | 18 | 2.5×37 | |
| 20mm | 23.6 | 20 | 2.8×42 | |
| 22mm | 25.0 | 22 | 2.8×48 | |
| 25mm | 27.7 | 25 | 3.2×48 | |
| 30mm | 33.1 | 30 | 3.2×53 | |
| 35mm | 36.6 | 35 | 3.2×58 | |
| 40mm | 45.2 | 40 | 3.4×60 |
